Product detail

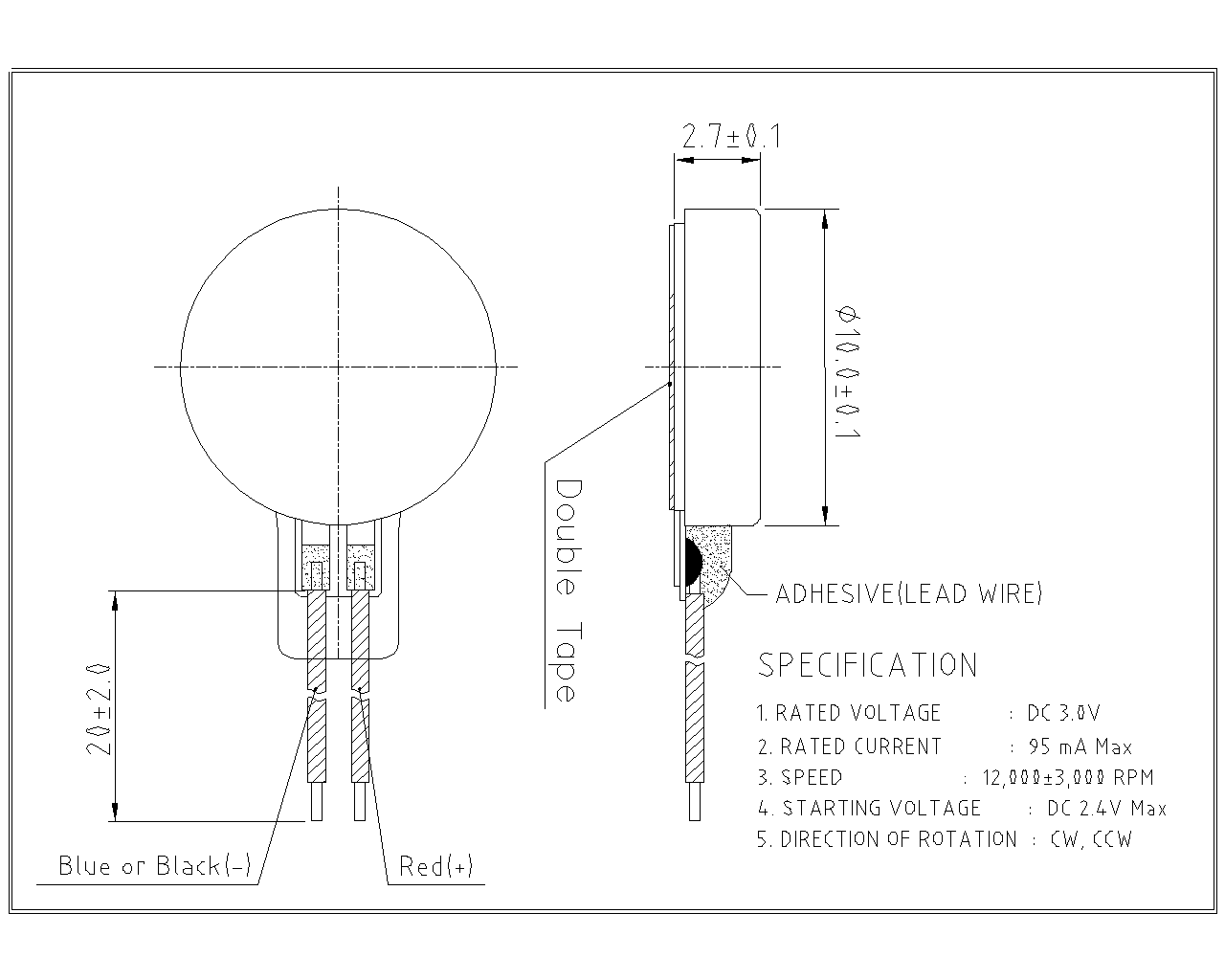

10mm diameter Coin Vibration Motor – Model No. GE1027-BLW01
Rated Voltage 3.0V
Lead Time : 6 weeks
DATA SHEET
Electrical Characteristics & Mechanical Characteristics
|
Rated Voltage |
DC 3.0V |
|
Direction of rotation |
CW/CCW (Both of direction) |
|
Operating voltage range |
DC 2.4V ~ 3.6V |
|
Rated speed |
12,000 ± 3,000 rpm |
|
Rated current |
85mA Max |
|
Locked current |
140mA Max |
|
Starting voltage |
2.4V Max |
|
Terminal resistance |
30Ω ± 20% |
|
Mechanical noise |
45dB(A) Max |
|
Diameter |
10.0 mm |
|
Housing thickness |
2.7 mm |
|
Poron tape |
Customized spec |
|
Double side tape |
Recommended |
|
Lead wire length |
Customized spec |
Haptic feedback characteristics
Typical rising time(ms) : 40~50mS
Typical falling time(ms) : 40~50mS
Lead wire length can be customized to meet customer requirements. The minimum available lead wire length is 12 mm.
Lead wires can be supplied with tinned ends or terminated with customer-specified connectors to meet your application requirements.Connector selection is finalized in consultation with the customer after evaluating lead wire compatibility, connector availability, lead time, and pricing.
Contact us
For detailed product specifications, technical support, and quotation requests, please don’t hesitate to contact our sales team.
