Product detail
6mm diameter Cylinder Vibration Motor
– Model No. GE0612-BLW01
Rated Voltage 3.0V
Lead Time : 6 weeks

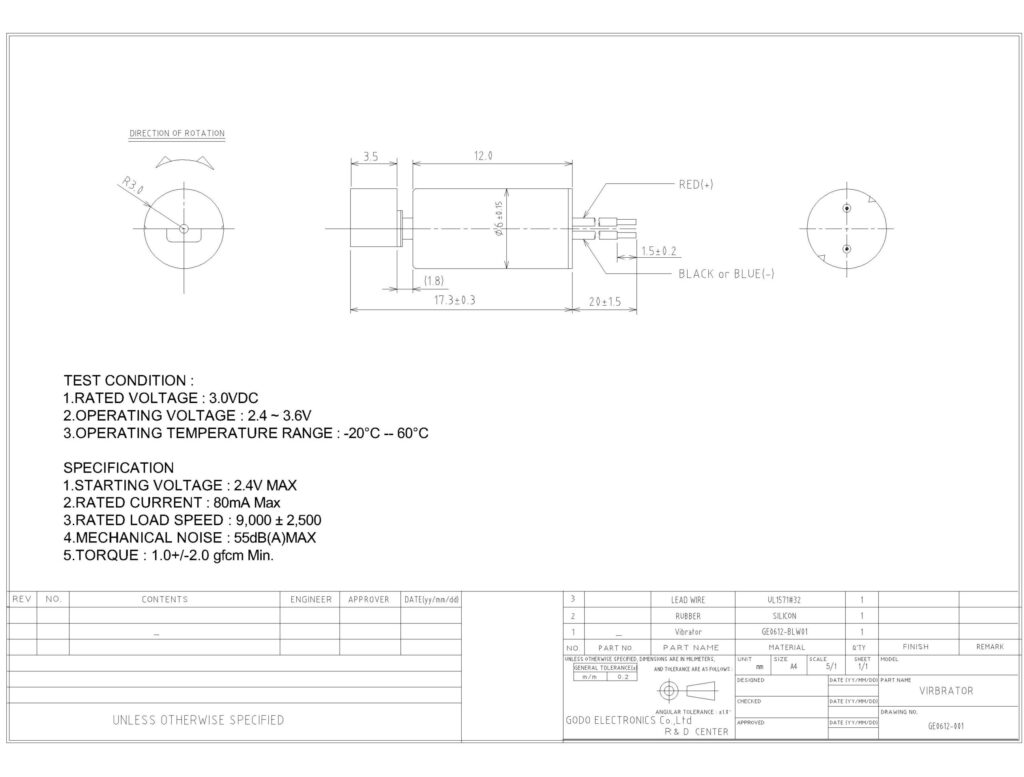

DATA SHEET
Electrical Characteristics & Mechanical Characteristics
|
Rated Voltage |
DC 3.0V |
|
Direction of rotation |
CW/CCW (Both of direction) |
|
Operating voltage range |
DC 2.4V ~ 3.6V |
|
Rated speed |
9,000 ± 2,500 rpm |
|
Rated current |
80mA Max |
|
Locked current |
120mA Max |
|
Starting voltage |
2.4V Max |
|
Terminal resistance |
30Ω ± 20% |
|
Mechanical noise |
55dB(A) Max |
|
Diameter |
6.0 mm |
|
Housing length |
12.1 mm |
|
Counter weight length |
3.5 mm |
|
Radius of counter weight |
R3.0 mm |
|
Lead wire length |
Customized spec |
|
Total length of motor |
17.3 mm |
Haptic feedback characteristics
Typical rising time(ms) : 50~70mS
Typical falling time(ms) : 70~80mS
Rubber bracket installation is optional and can be customized according to customer requirements.
Lead wire length can be customized to meet customer requirements. The minimum available lead wire length is 12 mm.
Lead wires can be supplied with tinned ends or terminated with customer-specified connectors to meet your application requirements.Connector selection is finalized in consultation with the customer after evaluating lead wire compatibility, connector availability, lead time, and pricing.
