Product detail

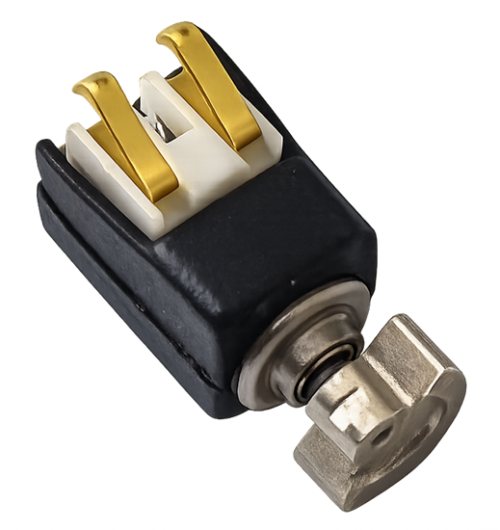

4mm diameter Cylinder Vibration Motor
– Model No. GE0407-BCSR01
Rated Voltage 3.0V
Lead Time : 6 weeks
DATA SHEET

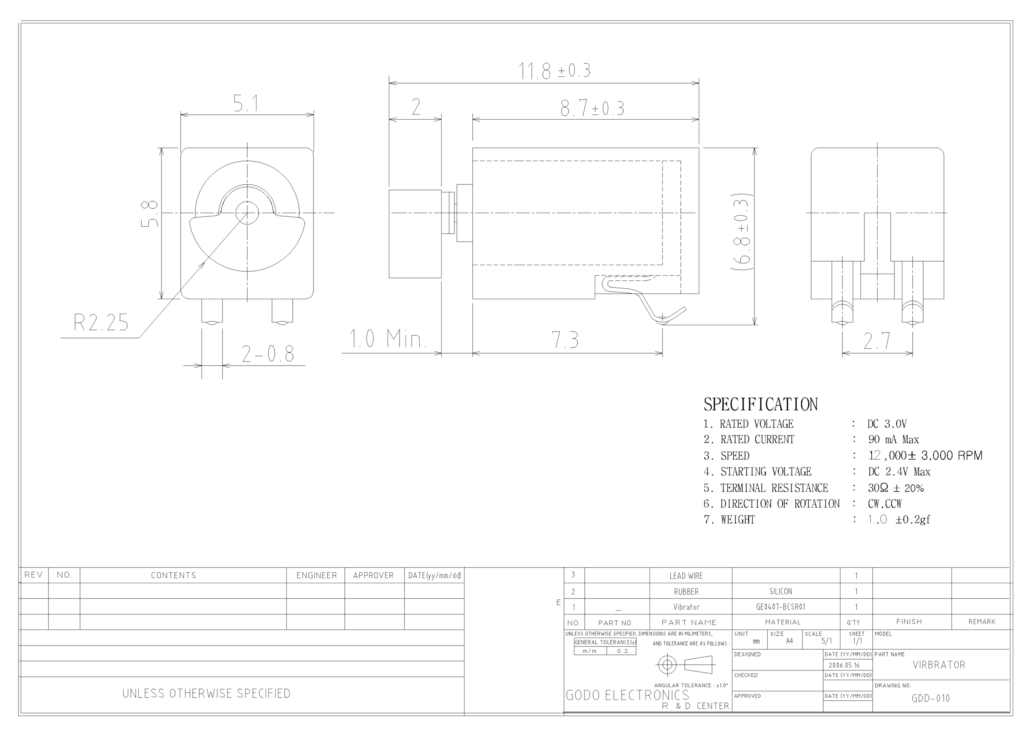

Electrical Characteristics & Mechanical Characteristics
|
Rated Voltage |
DC 3.0V |
|
Direction of rotation |
CW/CCW (Both of direction) |
|
Operating voltage range |
DC 2.4V ~ 3.6V |
|
Rated speed |
12,000 ± 3,000 rpm |
|
Rated current |
90mA Max |
|
Locked current |
120mA Max |
|
Starting voltage |
2.4V Max |
|
Terminal resistance |
30Ω ± 20% |
|
Mechanical noise |
50dB(A) Max |
|
Diameter |
4.0 mm |
|
Housing length |
8.7 mm |
|
Counter weight length |
2.0 mm |
|
Radius of counter weight |
R2.25 mm |
|
Height of rubber bracket |
5.8 mm |
|
Width of rubber bracket |
5.1 mm |
|
Total height |
6.8 mm |
|
Total length of motor |
11.8 mm |
Haptic feedback characteristics
Typical rising time(ms) : 40~50mS
Typical falling time(ms) : 40~50mS
