Product detail

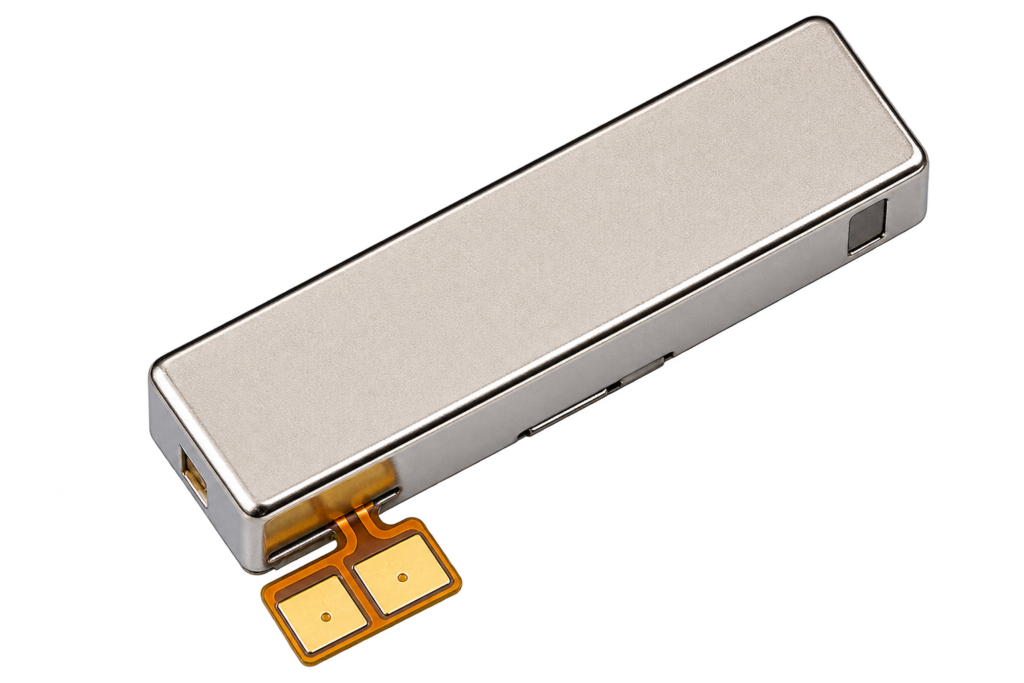

8mm diameter Linear Vibration Motor
– Model No.GDLM-061930-P01
Input Voltage : 1.2±0.05 Vrms AC (Sine wave)
Lead Time : 10 weeks
DATA SHEET
Electrical Characteristics & Mechanical Characteristics
|
Input Voltage |
1.2±0.05 Vrms AC (Sine wave) |
|
Direction of vibration |
Both sides |
|
Operational frequency |
170±12Hz |
|
Acceleration |
2.0G Min. |
|
Rising time |
50ms Max. |
|
Falling time |
60ms Max |
|
Acoustic noise |
50 dB(A) Max. |
|
Terminal resistance |
10Ω ± 20% |
|

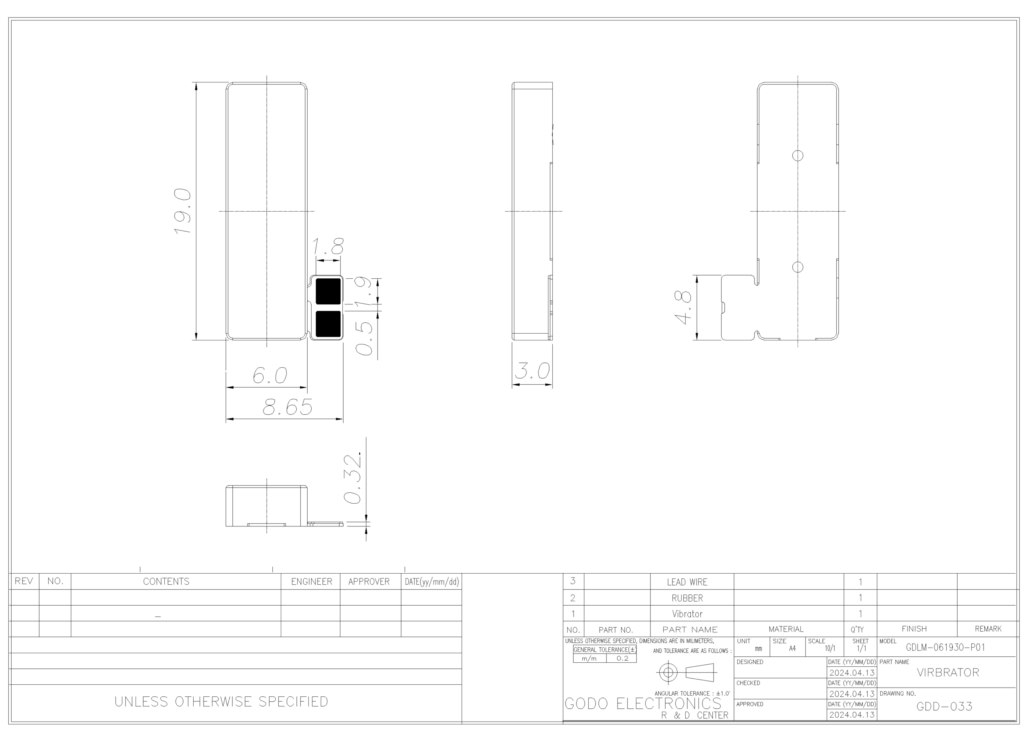

Size |
6.0 mm x 19.0mm |
|
Housing thickness |
3.0 mm |
|
Poron tape |
Customized spec(Recommended) |
|
Double side tape |
Recommended |
